12" Corner Offset Guard Rail Post with Cap

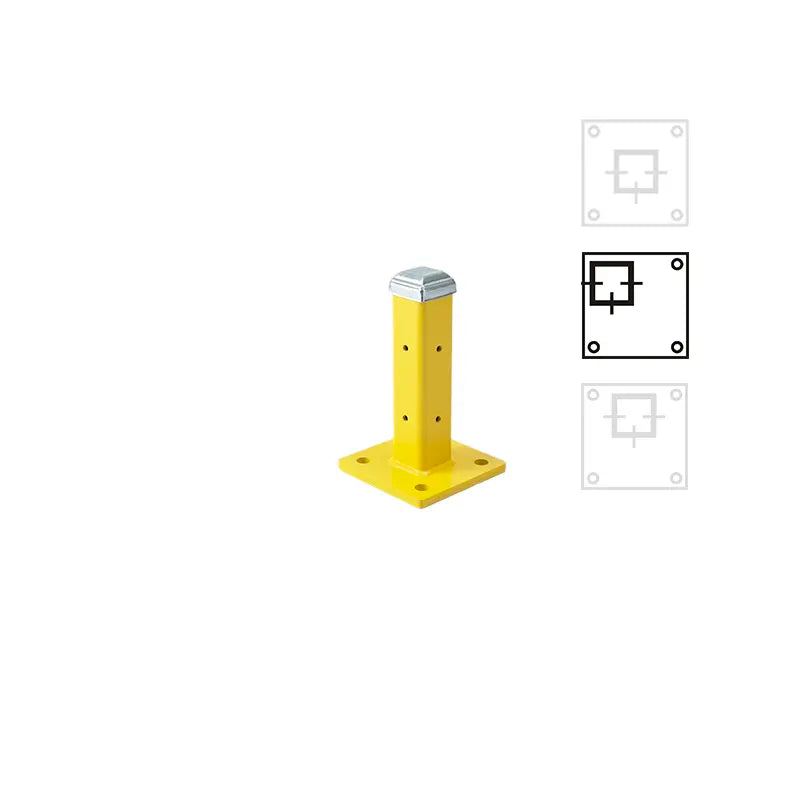

RP-SCUOMDYW is a 12" corner offset post with cap for our single-high-rail Armor Guard lineup of medium-duty guard rail safety products. This universal post (holes on 3 sides for design and assembly flexibility) is constructed from 3" square structural tubing with a 1/4" thick steel wall and an 8" square base plate. USA-made and powder coated for durability in a highly visible and UV resistant yellow color. Posts also include four 3/4" x 5-1/2" anchors, a cap, and rail mounting hardware for installation. Compatible with Armor Guard rails, posts, and accessories (sold separately), you can easily create and install a trusted barrier to protect your employees, guests, racking, machinery, and facility.
Armor Guard guard rail systems are easy to configure and install to create the perfect economical safety solution for separating employee areas from light shop traffic and machinery. Armor Guard is modular, enabling easy expansion or relocation and features universal posts (three sided holes) for ultimate flexibility in configuration and installation. Want to increase the protection from fork lifts and other heavy equipment? Check out our leading Steel Guard heavy-duty guard rail safety solutions for the best in protection.
-
Series
-
Size Summary
-
Rail Levels
-
Connection Type
-
Width (in.)
-
Depth (in.)
-
Height (in.)
-
Finish Method
-
Color
-
Material
-
Construction
-
Compliance
Need help designing or specifying the right components? We can help! Chat or contact us now. If you are tackling yourself, feel free to use this helpful guide:
- Choose the height of your system. Steel Guard is available in either single (18" high posts) or double high (43" high posts).
- Choose your necessary post type. Standard corner posts are available. Center posts are available in four options: standard, standard offset, end offset, and side offset.
- Choose your rail lengths. Note that rails are measured from post-to-post, on center; the actual rail component will be 4″ shorter than the specified length on Steel Guard. Lift-out pockets increase the center-to-center dimension by 1″.
- Choose bolted or lift-out rail. The lift-out rail provides equipment protection while still enabling easy access when needed.
- Are gates needed? Steel Guard gate includes all hardware and end caps for easy installation without cutting, welding, or drilling. It can be flipped for in-swing or out-swing orientation.
