1/2"x3-3/4" Concrete Floor Anchor for SK2000 Rack

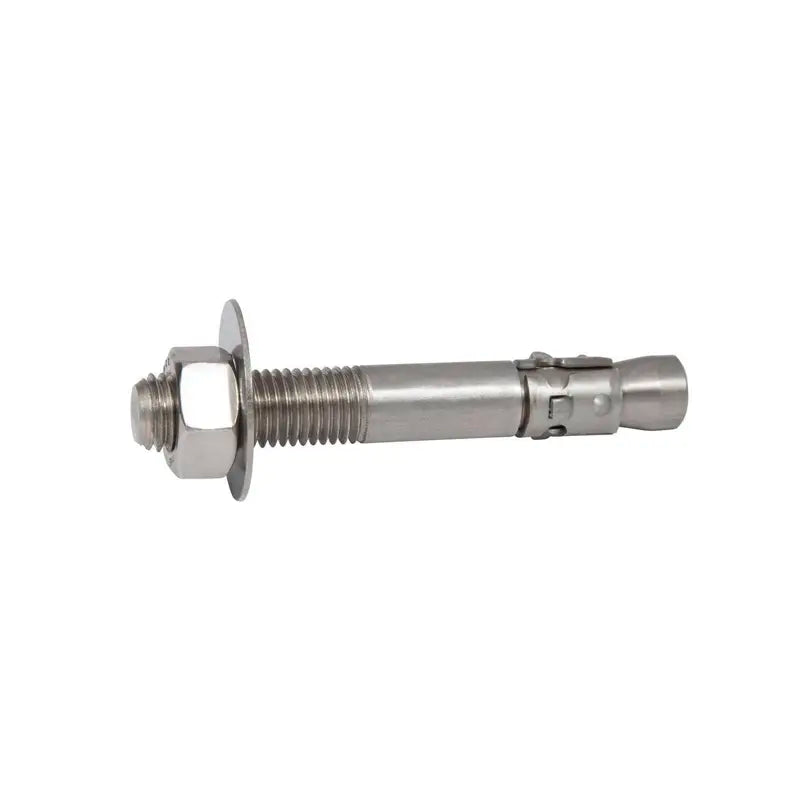

RP-ANCHOR.5x3.8-HIL is a 1/2" x 3-3/4" concrete floor anchor for our industry-leading SK2000 Pallet Racking.

ANCHORING NOTES:

• Every column of each rack upright frame must be anchored to an adequate concrete floor.
• This is the normal anchor connection, a 1/2" diameter x 3-3/4" concrete expansion anchor per column footpad, or as indicated on installation drawings.
• Seismic uprights, those with 5” x 7” base plates, utilize (2) 1/2" diameter x 4- 1/2" I.C.C. approved concrete expansion anchors per column footpad.
• Anchor bolts are not included with rack systems unless otherwise noted.
• Since anchor bolts vary in strength, if you are purchasing your own anchor bolts, contact us for minimum anchor specifications for your installation.
• Since concrete floors vary greatly in design and load carrying capacity, we cannot guarantee that a particular concrete slab is adequate to support a particular rack installation. The characteristics of the slab should be obtained from the building architect or engineer before the racks are specified, so that the rack supplier can design the rack to suit the slab.

*Anchoring Note: The use of handheld and stand-mounted drills, impact and rotary hammer drills, and similar tools used to drill holes in concrete, masonry, or other silica containing materials can generate respirable crystalline silica dust. Read this OSHA Fact Sheet to learn how to minimize the amount of airborne dust when using handheld and stand-mounted drills.
https://www.osha.gov/sites/default/files/publications/OSHA_FS-3630.pdf
