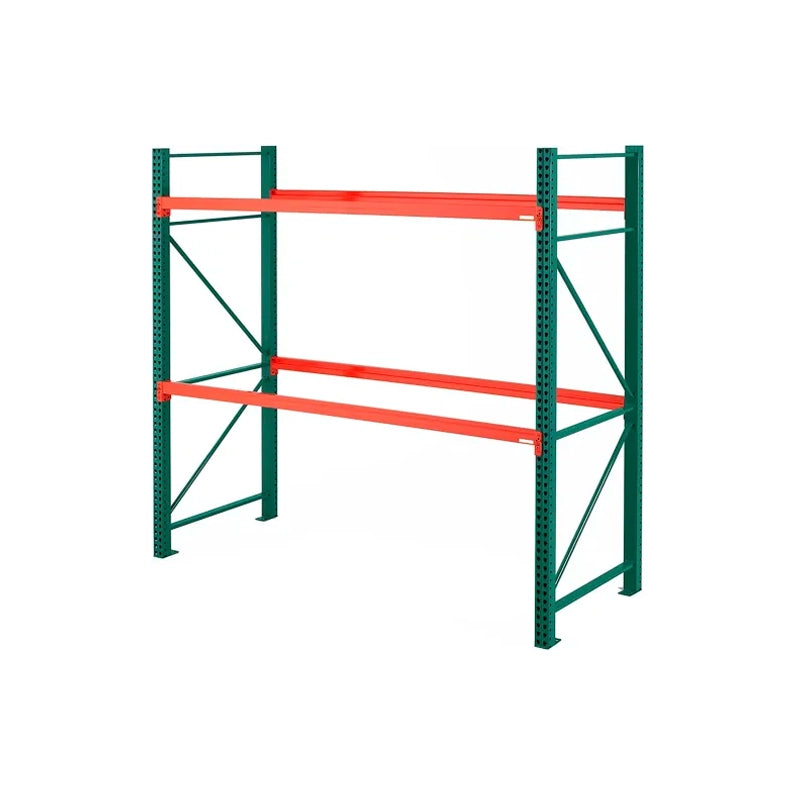

96"W x 42"D x 144"H Teardrop Starter Pallet Rack Kit | 5080 lb Capacity Per Level

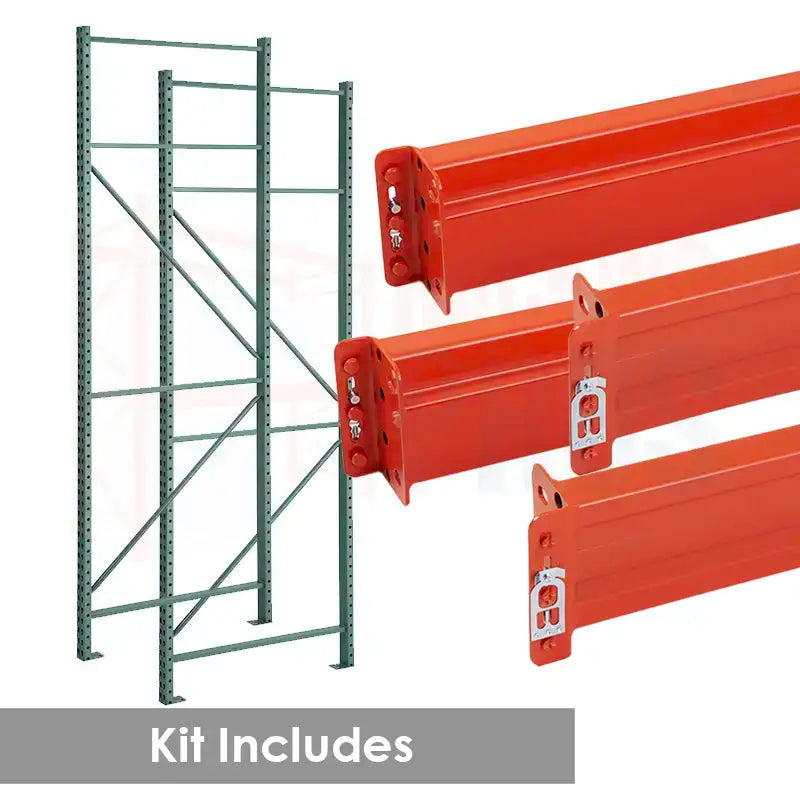

This 96"W x 42"D x 144"H teardrop starter pallet rack kit is USA-made and features a closed-tube construction for longer lasting and safer operation with a total capacity* up to 22,780 lb and individual level capacity to 5080 lb. This SK2000 starter bay kit includes the necessary upright frames (qty. 2; item# RTFAP042144F01VG) and beams (qty. 4; item# SBRUM400096P) to quickly create your first storage bay (concrete floor anchors sold separately if not providing your own). This starter bay allows you to easily add additional racking bays by purchasing compatible add-on bays (sold separately and displayed in Add-on Products on this page). Optionally, purchase additional SK2000 beams to increase the storage levels within your bays based on your weight and size requirements. The strength of our SK2000 closed-back upright frames make our rack significantly safer and more functional than open-back rack. Independent engineering tests have confirmed that, when compared to open-back column, SK2000 pallet racking has:

• 250% more front impact strength
• 44 times more twist resistance
• 68% more side impact resistance

These safety factors make this strong, yet lightweight, boltless tubular rack a popular choice for selective rack, gravity flow, pushback and pick module applications. SK2000's columns and beams are formed from high-strength American-made steel, continuously welded into closed-back sections, providing exceptional strength and dramatically increased durability compared to other products on the market. Its boltless design, with auto-engaging safety locks (prevents accidental beam disengagement per RMI specifications) and teardrop connections, makes it easy to install without tools, which can lead to faster install times and less expensive installation. If you need support in selecting, designing a complete rack structure, or locating an installer, we are here to help–just chat or contact us now.

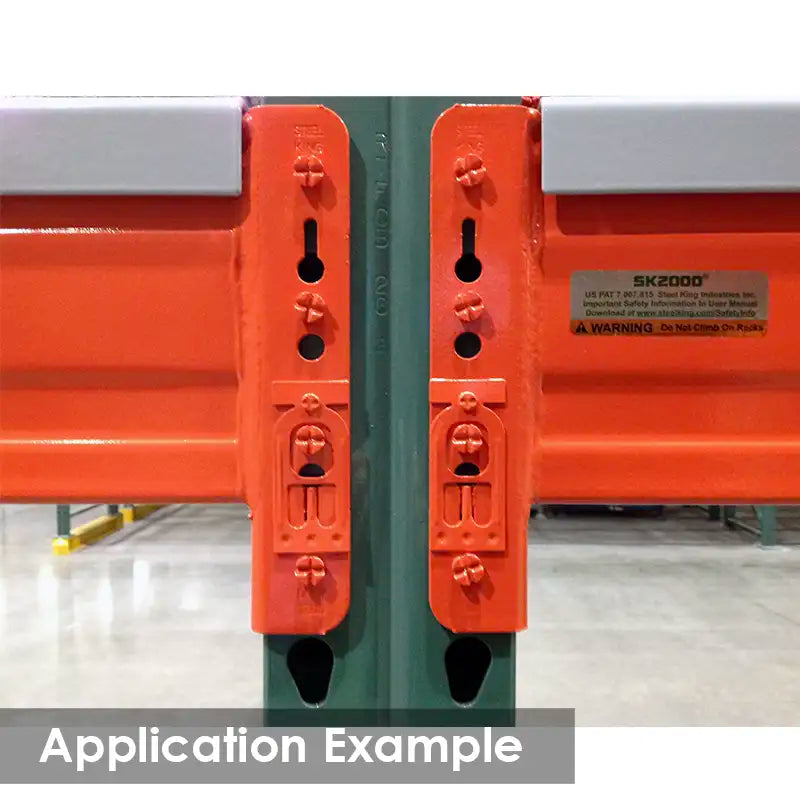

Upright frame bracing is secured with full fillet weld that is 4 times more weld than many competitors’ racks. Beams feature a 3-rivet connection that easily inserts into frame teardrops and is 26% stronger than competitive 2-rivet designs. Beams can easily be adjusted in 2" vertical increments on frame and have a 1-5/8" step for optional wire decking and pallet supports (sold separately). When it comes to a highly versatile and effective rack solution that will provide lasting safety and storage, this is your rack. An appealing powder coat in our Vista Green (frames) and Poppy Orange (beams) color not only makes the racking appealing but it also more durable against damage, and more resistant to chemicals and scratches compared to liquid paint coatings.
